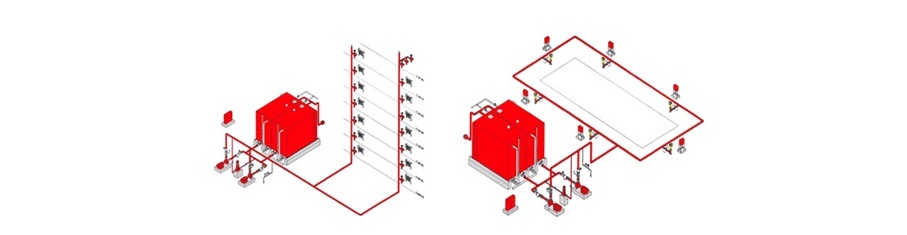

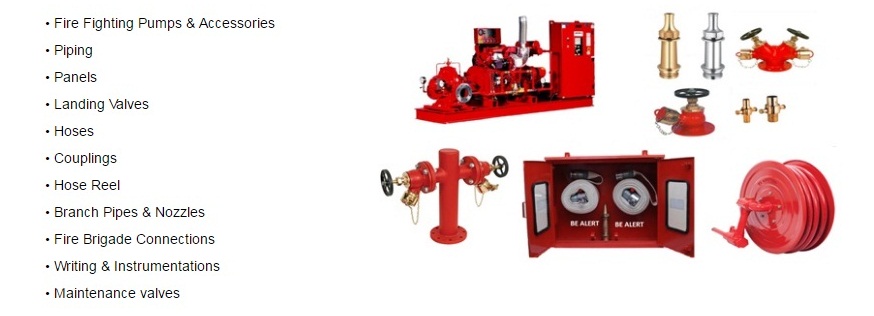

FIRE HYDRANT SYSTEMS

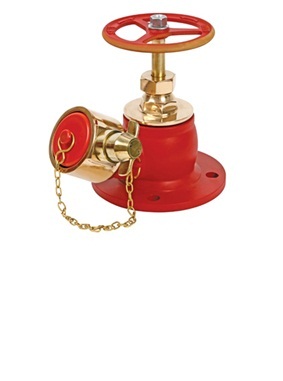

Gun Metal
Stainless Steel
Flanged Ends / Screwed to BSPT OR NPT threaded.
As per IS - 6392 / 1538 ANSI / As per Clients Specification
Rubber Washers -- IS 937 (Type A)
Cast Iron wheel --- IS 210
Hydraulic Test of seat --- 14 kg/Cm2
Hydraulic Test of Body --- 21 kg/Cm2
Flow Test at 7kg / Cm2 --- 900 LPM
2 ½” (63mm)
BIS (Bureau of Indian Standards) IS 5290 Type A.
Flanged Ends / Screwed to BSPT OR NPT.
Flow Test at 7kg / Cm2 --- 1800 LPM
BIS (Bureau of Indian Standards) IS 5290 Type B.
Aluminum
Hydraulic Test of Body --- 21 kg/Cm2.
BIS (Bureau of Indian Standards) IS 903
Mild Steel
2.5", 3" and 4"
Inlet Size: 2.5" to 6"
BIS (Bureau of Indian Standards) for 63mm and 75mm
BIS Specification --- IS: 884 ISI Marked

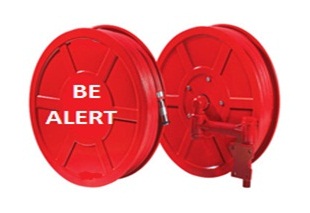

Type --- swing manual wall mounted (a type)
SIDES, HUB, WALL BRACKET --- MS Sheet Conforming to IS 513

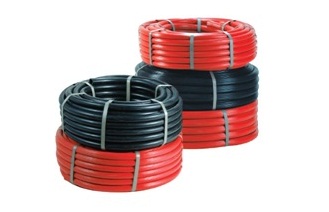

HOSE --- Rubber as per IS 444
SHUT OFF NAZZLE --- IS 8090
SIDE PLATE --- power Coated finish red
HOSE REEL DRUM--- can be rotate for left and right direction
HYDROSTATIC PRESSURE TEST --- No Leakage at 21 kg/Cm2
RANGE OF THROW AT 7 KG/CM2 --- Minimum 6 Metres
DISCHARGE AT 7 KG/CM2 --- Minimum 24 LPM
PLASTIC JET & SPRAY NOZZLE
